Integrations

Jira Data Center

Connect a Jira server you host yourself, with an OAuth 2.0 incoming link or with personal access tokens, and register its webhook.

After this page, a team can use a Jira server you host yourself the way other teams use Jira Cloud: import issues into planning poker, write estimates back, export action items and keep their status in step. An instance works with one Jira server.

What it does

With read-and-write access, the team can turn on the two-way status sync: completing an action item moves its Jira issue to done, closing the issue completes the item, and imported poker tasks follow their issue.

There are two ways to sign in to Jira. The instance admin allows one or both.

Prefer OAuth when your Jira supports it.

With read-only access, imported tasks can still follow their Jira issue when status sync is on; Skrüm cannot write changes back to Jira.

Who can set it up

• The server’s address and the allowed ways to sign in: an instance admin, in Administration, then Integrations: see Integration apps. The incoming link is created by a Jira administrator.
• A team’s connection: a workspace owner or admin, or the team’s owner, on the team’s Integrations page.
• The webhook of the status sync: Skrüm registers it when the connecting account administers Jira. Otherwise a Jira administrator adds it by hand.

Before you start

• The server running Skrüm must reach your Jira server. Both can be on the same private network.
• With OAuth, the callback address is opened by the browser of the person who connects.
• Live status updates need Jira to call your instance. By default Skrüm accepts those calls only when APP_URL is a public HTTPS address; otherwise it asks Jira every INTEGRATIONS_POLL_MINUTES minutes, 5 by default. If your Jira server reaches Skrüm on a private network, set INTEGRATIONS_INBOUND_WEBHOOKS=on. See Integrations overview.

On the vendor’s side

OAuth 2.0: an incoming link

1. As a Jira administrator, open Administration, then Applications, then Application links.

2. Select Create link, choose External application, then Incoming.

3. Enter this redirect URL, with your own address in place of {APP_URL}:

   {APP_URL}/integrations/jira-dc/callback

4. Choose the permission. Skrüm asks for the scope READ for a read-only connection and WRITE for a read-and-write one, so give the link the write permission if teams will write estimates or export action items.

5. Copy the Client ID and the Client secret Jira shows.

Atlassian describes these steps in Configure an incoming link.

A personal access token

Nothing is created in advance. The person who connects the team creates a token in Jira, under Profile, then Personal access tokens, and pastes it into Skrüm. Atlassian describes it in Using personal access tokens.

In Skrüm, Administration

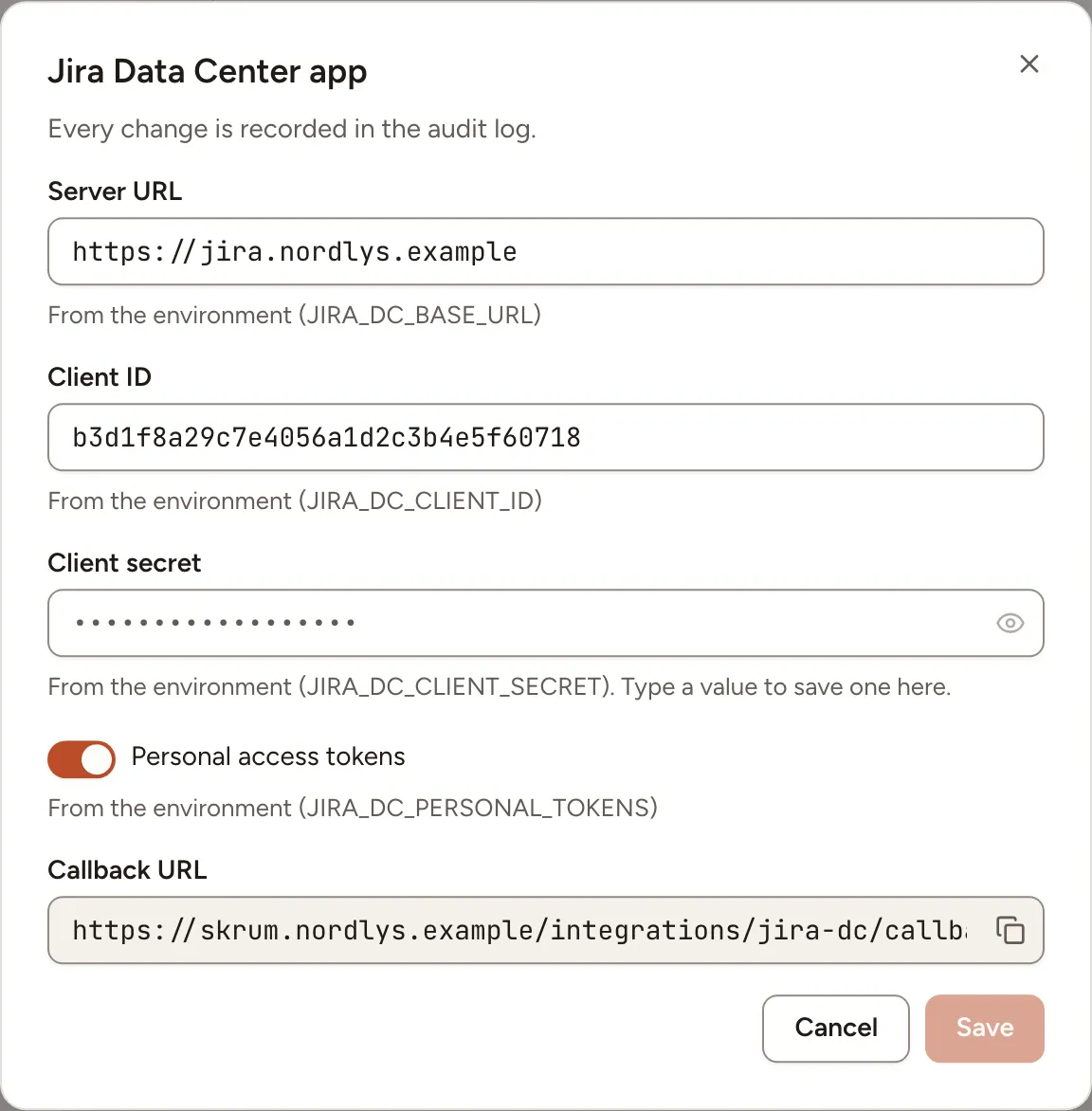

Open Administration, select Integrations, then Configure on the Jira Data Center row.

The row reads Available once the Server URL is set and at least one way to sign in is allowed. A value saved here wins over the environment variable.

In the team’s Integrations page

Open the team’s settings, select Integrations, then Connect on the Jira Data Center row.

• With OAuth: select Connect (read only) or Connect (read and write) and allow the application in Jira.
• With a token: select Use a personal access token, or Older Jira server? Use a personal access token when OAuth is offered too. Paste the token, choose Read only or Read and write under Access, tick I understand and select Save token. With read-only access, Skrüm itself refuses to write, whatever the token allows.

A connection made with a token shows Acting as followed by the owner’s name: imports, estimates, exported issues and status changes appear in Jira as done by that person, and Skrüm sees only what they can see.

The panel then offers the same settings as Jira Cloud: Story points field, People, Priorities, Sync status and Status mapping. They are described in Jira Cloud.

The webhook of the status sync

When Sync status is on and the instance accepts Jira’s calls, Skrüm registers a webhook in Jira by itself if the account it acts as administers Jira. If not, the panel says Only a Jira administrator can register the webhook.

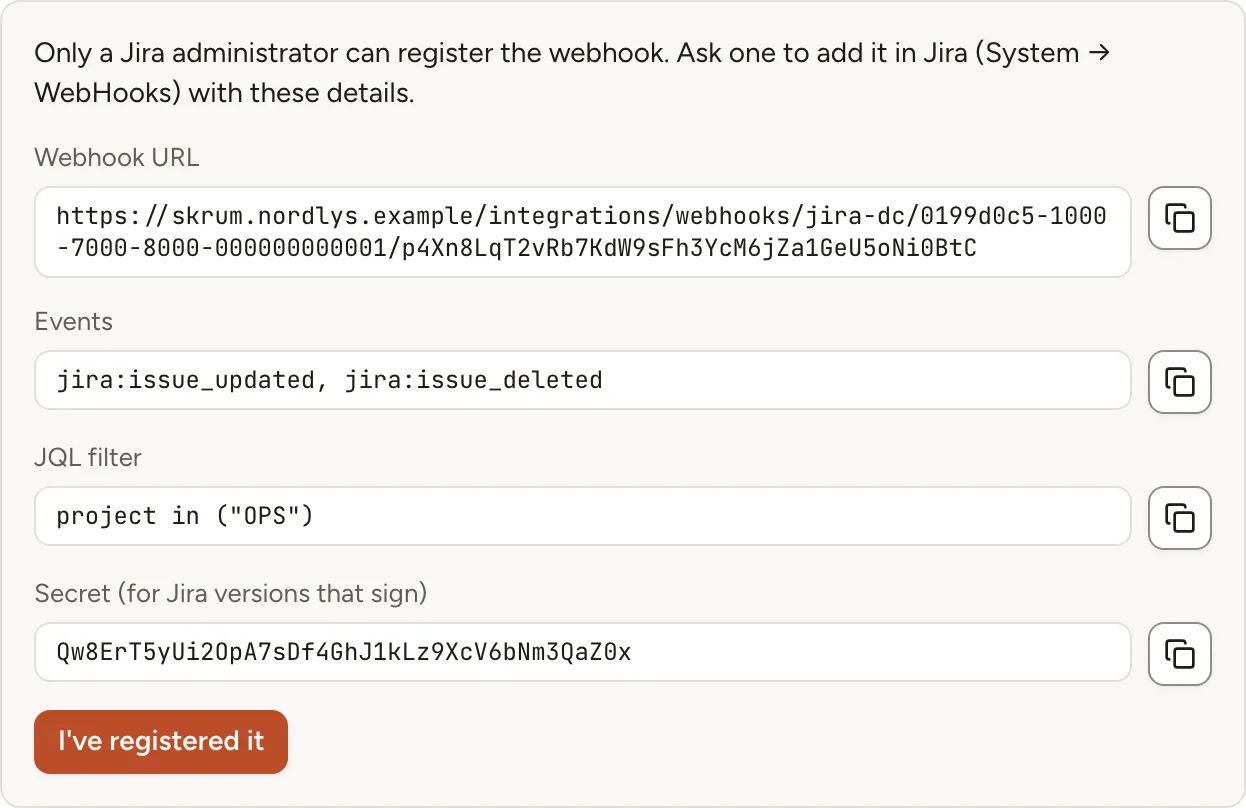

1. Select Show webhook details.
2. Send the four values to a Jira administrator, who adds a webhook in Jira under System, then WebHooks.
3. When it is added, select I’ve registered it. The panel reads Setting up live updates… until Jira’s first call arrives, then Live updates (webhooks).

Atlassian describes the screen in Managing webhooks.

Test it

Open the panel and select Test the connection. Skrüm asks Jira who it is signed in as and shows The connection works.

Troubleshooting

Disconnecting

Turn the row’s switch off, or select Disconnect in the panel (Remove token for a token), and confirm. Imported tasks and exported issues keep their links but are no longer synced, and the people and priority mappings are deleted. Skrüm asks Jira to remove the webhook it registered itself.

What stays on Jira’s side:

• With OAuth, the authorisation. The person who connected revokes it under Authorized applications in their Jira profile.
• With a token, the token. Skrüm deletes its copy; its owner revokes it in Jira under Profile, then Personal access tokens.
• A webhook added by hand. A Jira administrator deletes it under System, then WebHooks.

Official documentation

• Configure an incoming link
• Using personal access tokens
• Managing webhooks
