Integrations

GitHub

After this page, a team can import GitHub issues into planning poker, write estimates into them, export action items as issues and keep their status in step. An instance admin registers one GitHub App; each team then installs it on its organisation or account.

What it does

Import issues into planning poker, by milestone or by search.
Write the estimate of a task into the description of its issue.
Export action items as issues, with an assignee and a label for the priority.
With the status sync on: completing an action item closes its issue, closing the issue completes the item, and imported poker tasks follow their issue.

Writing needs the installation to have write access to issues; with read access the team can import and receive issue status updates when sync is on, but cannot write changes back to GitHub.

GitHub cannot guard a write against a concurrent edit. An issue description changed in GitHub at the very moment Skrüm writes an estimate into it can be overwritten.

Who can set it up

The GitHub App and its values: an instance admin, in Administration, then Integrations: see Integration apps.
A team’s connection: a workspace owner or admin, or the team’s owner, on the team’s Integrations page. That person must be allowed to install the app on the GitHub account, or already see its installation there.

Before you start

It is a GitHub App, not an OAuth App. The one used for signing in with GitHub is a separate OAuth App and cannot serve here.
It works with github.com only. GitHub Enterprise Server is not supported.
The callback address is opened by the browser of the person who connects. The server running Skrüm must reach github.com and api.github.com.
The webhook is optional. It gives live status updates and needs GitHub to call your instance, so APP_URL must be a public HTTPS address. Without it, or on a private network, leave the webhook inactive: Skrüm asks GitHub every INTEGRATIONS_POLL_MINUTES minutes, 5 by default. See Integrations overview.

On the vendor’s side

Register a GitHub App, under your organisation’s or your own Developer settings, with these values. Put your own address in place of {APP_URL}.

Field in GitHub	Value
Callback URL	`{APP_URL}/integrations/github/callback`
Request user authorization (OAuth) during installation	Selected. Skrüm needs both the installation and a proof of who installed it, at the callback address
Setup URL	Leave it empty: with Request user authorization (OAuth) during installation selected, GitHub does not let you enter one
Webhook, Active	Selected for live updates, cleared otherwise
Webhook URL	`{APP_URL}/integrations/webhooks/github`
Webhook secret	A long random string of your own. You enter the same one in Skrüm
Where can this GitHub App be installed?	An option that includes every account your teams will install it on

Permissions:

Kind	Permission	Access	Why
Repository	Issues	Read and write	Import issues, write estimates, create issues. Read-only makes every connection read only
Repository	Metadata	Read-only	List the repositories of the installation
Organization	Members	Read-only	List the organisation’s members when you map people

After changing the app’s permissions, an installation owner must approve the new permissions on GitHub. Reconnect the team in Skrüm to refresh the access shown on its connection.

Under Subscribe to events, select issues. Skrüm also acts on the installation and installation_repositories events, to notice that the app was uninstalled or suspended, or lost a repository: select them as well if the form lists them.

Then, on the app’s page:

Note the App ID, the Client ID and the app’s slug, which is the last part of its public address, https://github.com/apps/{slug}.
Generate a client secret.
Under Private keys, select Generate a private key. GitHub downloads a .pem file.

GitHub describes the form in Registering a GitHub App, the permissions in Choosing permissions for a GitHub App, the webhook in Using webhooks with GitHub Apps and the key in Managing private keys for GitHub Apps.

In Skrüm, Administration

Open Administration, select Integrations, then Configure on the GitHub row.

Field	Environment variable
App ID	`GITHUB_APP_ID`
App slug	`GITHUB_APP_SLUG`
Client ID	`GITHUB_APP_CLIENT_ID`
Client secret	`GITHUB_APP_CLIENT_SECRET`
Private key	`GITHUB_APP_PRIVATE_KEY`
Webhook secret	`GITHUB_APP_WEBHOOK_SECRET`

Paste the whole content of the .pem file into Private key. In the environment variable, write the key on one line with \n for each line break, or give the path of the file in GITHUB_APP_PRIVATE_KEY_PATH instead, which has no field in the dialog.

The row reads Available once the first five are set. The webhook secret can stay empty. A value saved here wins over the environment variable.

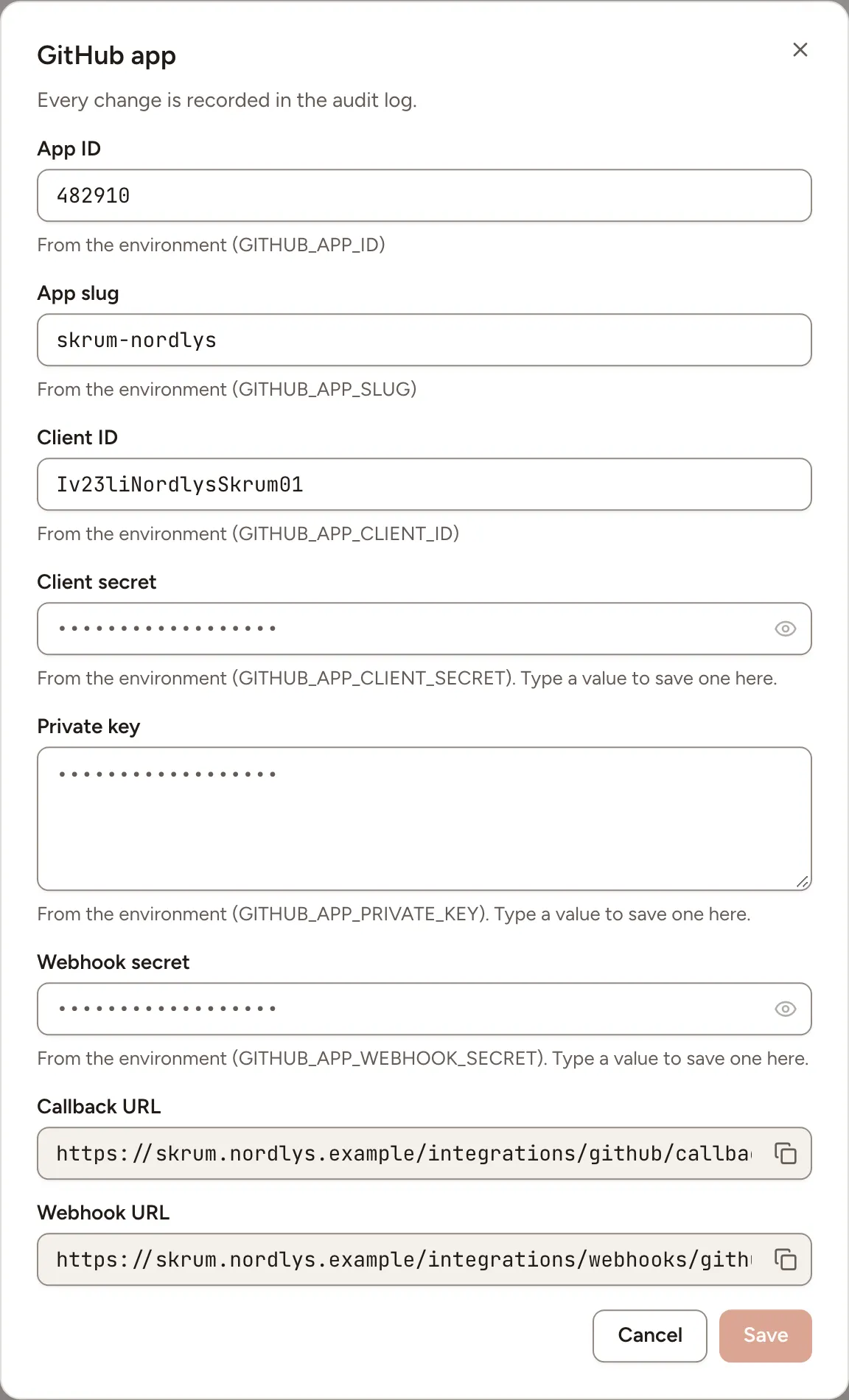

The GitHub app dialog: the app ID, the slug, the client ID and secret, the private key and the webhook secret, then the callback URL and the webhook URL to copy

In the team’s Integrations page

Open the team’s settings and select Integrations.
Select Connect on the GitHub row, then Install the GitHub App.
On GitHub, choose the organisation or account, then all its repositories or the ones the team works in, and install.
Back in Skrüm, the row reads Connected with the account’s name. Access is Read and write when the installation may write issues, Read only otherwise.

The panel then offers these settings.

Setting	What it does
People	Which GitHub account each member is, for the assignee of exported issues. Members who signed in to Skrüm with GitHub are matched by Match GitHub sign-ins. For one person, choose an account, Never assign, or Reset
Priority labels	The label added to an exported issue for each of High, Medium and Low. Leave one empty to add none. Skrüm never creates a label: use ones the repository already has. Select Save
Sync status	Turns the status sync on, after a confirmation: the first sync takes the state of every linked issue, then the most recent change wins
Treat canceled as done	Whether an issue closed as not planned or as a duplicate counts as done. On by default

Export repository appears among the details once an action item was exported: it is the repository used last, offered first the next time. People and Priority labels appear with read and write access only. Manage the installation opens GitHub to change the repositories.

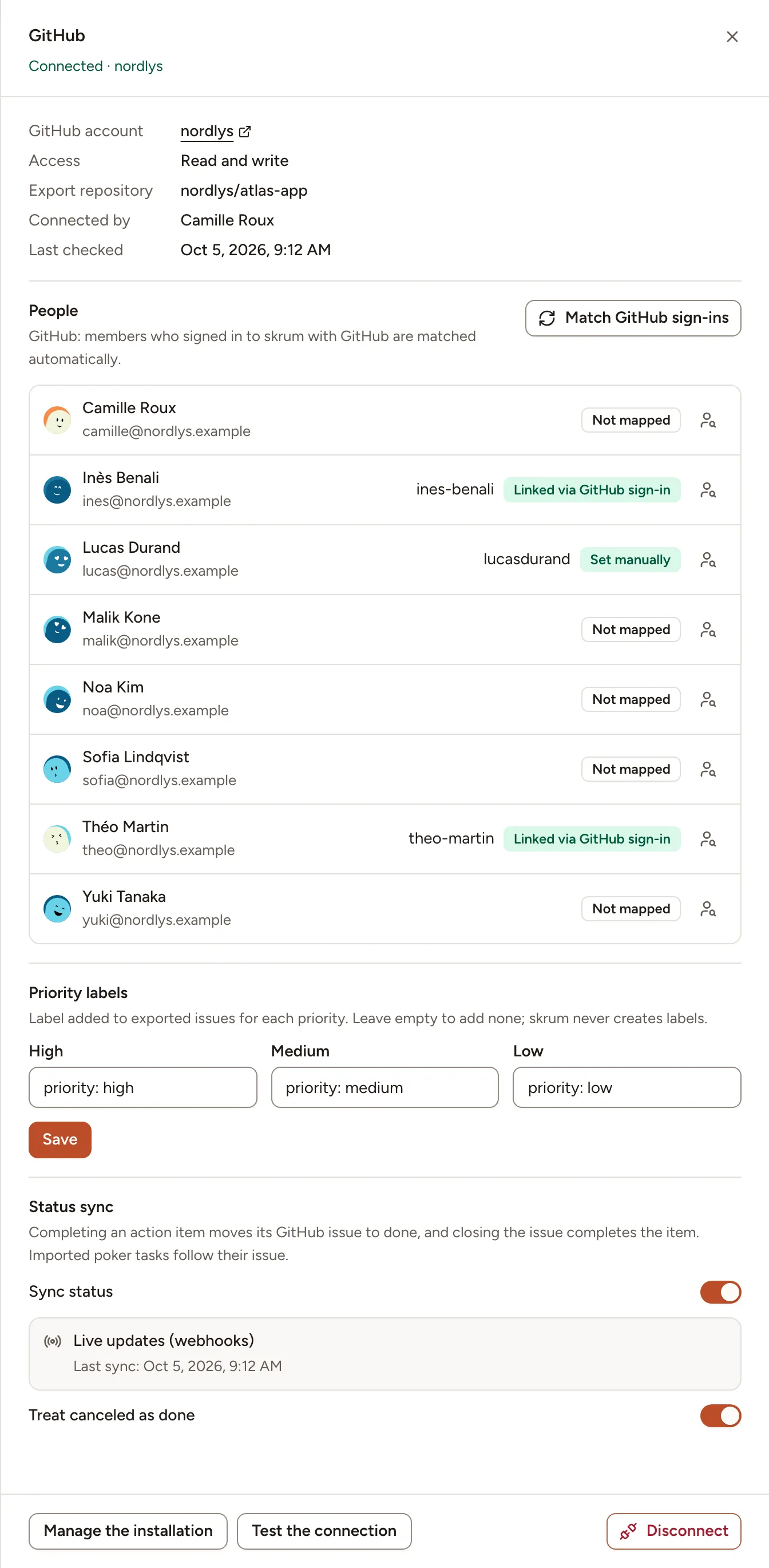

The GitHub panel of a connected team: the account, its access and export repository, the people and their GitHub accounts, the priority labels, and the status sync with live updates

Test it

Open the panel and select Test the connection. Skrüm asks GitHub for the installation and shows The connection works.

Troubleshooting

What you see	What to do
Could not connect GitHub. Try again.	The installation was cancelled, or Request user authorization (OAuth) during installation is not selected, or the client ID, secret or callback URL do not match the app
This GitHub installation isn’t available to your account.	Your GitHub account cannot see that installation. Connect with an account that can
This installation can only read issues.	Give the app Issues: read and write on GitHub, accept the new permission on the account, then select Manage the installation
Reconnect required and The GitHub App was uninstalled from or is suspended on the account	Install the app again, or lift the suspension on GitHub, then connect again
Checking every 5 minutes.	No webhook secret is saved, or the instance does not accept GitHub’s calls. The sync works, with that delay
Webhooks aren’t reaching skrum; checking every 5 minutes.	Check the webhook’s address in the app, and that the same secret is saved on both sides

Disconnecting

Turn the row’s switch off, or select Disconnect in the panel, and confirm. Imported tasks and exported issues keep their links but are no longer synced, and the people mappings are deleted.

The GitHub App stays installed on the account, since other teams may use the same installation. Uninstall it on GitHub if no team uses it any more.
